Version: 0.0.55

FastTravelPlugin

note

Forced minimum CSP version of 0.2.8 (3424), EnableClientMessages: true and EnableAi: true in extra_cfg.yml are required for this plugin!

Features​

  • Allows players to teleport anywhere on the track.
  • Supports CSP teleportation points (configured in csp_extra_options.ini)
  • Disables collisions for a while after teleporting to reduce the griefing potential.

Configuration​

Enable the plugin in extra_cfg.yml

extra_cfg.yml
EnablePlugins:
- FastTravelPlugin

Example configuration

plugin_fast_travel_cfg.yml
# Available zoom levels. Last one should show the full track.
# If map image is shown, prioritize matching the track to the map image.
# Don't change the values if using Shutoko Revival Project
MapZoomValues:
- 100
- 1000
- 4000
- 15000
# Mouse move speeds of the respective zoom levels.
# Last value needs to be zero.
# Don't change the values if using Shutoko Revival Project
MapMoveSpeeds:
- 1
- 5
- 20
- 0
# Last zoom level has a fixed position, the track should be aligned to the center of the screen.
# If map image is shown, prioritize aligning the track with the map image.
# Don't change the values if using Shutoko Revival Project
MapFixedTargetPosition:
- -2100
- 0
- 3200
# Requires CSP version 0.2.8 (3424) which fixed disabling collisions online.
# Setting this to false will lower the version requirement to 0.2.0 (2651) and clients will not have disabled collisions when teleporting.
DisableCollisions: true
# Show the map.png of the track layout when in the last zoom level.
# Don't change if using Shutoko Revival Project
ShowMapImage: true

Teleport Destination Configuration​

You can also configure your csp_extra_option.ini teleport destinations to be selectable.
If you do not have such a file and want to add points please read this FAQ section.

By default, there are 3 "types" of points:

  • SP, the default, only visible on closer zoom levels
  • PA, can be assigned to points (or groups, more on that in a bit), is visible even when fully zoomed out.
  • ST, same as PA, just has a different Icon
note

More types and icons can be added by placing additional mapicon_<TYPE>.png images into the \plugins\FastTravelPlugin\wwwroot\ folder.
For example adding mapicon_gs.png would allow you to use POINT_<NUM>_TYPE = GS after restarting the server.

All points are treated as SP by default, but you can add POINT_<NUM>_TYPE = <TYPE> to your teleports to change their type.

For example:

csp_extra_options.ini
  [TELEPORT_DESTINATIONS]
  POINT_1 = Position 1
  POINT_1_GROUP = Shibaura PA
  POINT_1_TYPE = PA

  POINT_2 = Position 1
  POINT_2_GROUP = Shinjuku Station
  POINT_2_TYPE = ST

Points that are in the same group also "inherit" the type of the point that came before them.

csp_extra_options.ini
[TELEPORT_DESTINATIONS]
POINT_0 = Position 1
POINT_0_GROUP = Shibaura PA
POINT_0_TYPE = PA

POINT_1 = Position 2
POINT_1_GROUP = Shibaura PA

POINT_2 = Position 3
POINT_2_GROUP = Shibaura PA

POINT_3 = Position 4
POINT_3_GROUP = Shibaura PA

POINT_4 = Position 5
POINT_4_GROUP = Shibaura PA

Here only POINT_0 has a type configured, but since point 1-4 are in the same Shibaura PA group (and do not have a type specified themself), they will also be treaded as PA.

Teleport configuration based on the official Shutoko Revival Project teleport locations
csp_extra_options.ini
[TELEPORT_DESTINATIONS]
POINT_0 = Position 1
POINT_0_POS = 1098.8,25.3,-4642.1
POINT_0_HEADING = 246
POINT_0_GROUP = Shibaura PA
POINT_0_TYPE = PA

POINT_1 = Position 2
POINT_1_POS = 1098.8,25.3,-4649.8
POINT_1_HEADING = 245
POINT_1_GROUP = Shibaura PA

POINT_2 = Position 3
POINT_2_POS = 1098.9,25.3,-4657.4
POINT_2_HEADING = 246
POINT_2_GROUP = Shibaura PA

POINT_3 = Position 4
POINT_3_POS = 1099.4,25.3,-4664.9
POINT_3_HEADING = 246
POINT_3_GROUP = Shibaura PA

POINT_4 = Position 5
POINT_4_POS = 1099.2,25.3,-4672.4
POINT_4_HEADING = 245
POINT_4_GROUP = Shibaura PA

POINT_5 = Position 1
POINT_5_POS = 5862.1,23.3,-4649
POINT_5_HEADING = 267
POINT_5_GROUP = Tatsumi PA
POINT_5_TYPE = PA

POINT_6 = Position 2
POINT_6_POS = 5850.9,22.9,-4644.6
POINT_6_HEADING = 268
POINT_6_GROUP = Tatsumi PA

POINT_7 = Position 3
POINT_7_POS = 5839.7,22.5,-4640
POINT_7_HEADING = 268
POINT_7_GROUP = Tatsumi PA

POINT_8 = Position 1
POINT_8_POS = -308.6,15.5,6143.8
POINT_8_HEADING = 68
POINT_8_GROUP = Daishi PA
POINT_8_TYPE = PA

POINT_9 = Position 2
POINT_9_POS = -308.5,15.5,6150.7
POINT_9_HEADING = 68
POINT_9_GROUP = Daishi PA

POINT_10 = Position 3
POINT_10_POS = -308.1,15.4,6157.9
POINT_10_HEADING = 66
POINT_10_GROUP = Daishi PA

POINT_11 = Position 1
POINT_11_POS = -230.1,12.3,1360
POINT_11_HEADING = 104
POINT_11_GROUP = Heiwajima PA North
POINT_11_TYPE = PA

POINT_12 = Position 2
POINT_12_POS = -234.9,12.3,1354.1
POINT_12_HEADING = 106
POINT_12_GROUP = Heiwajima PA North

POINT_13 = Position 3
POINT_13_POS = -239.8,12.3,1348.1
POINT_13_HEADING = 105
POINT_13_GROUP = Heiwajima PA North

POINT_14 = Position 1
POINT_14_POS = 964.9,6.7,-126.1
POINT_14_HEADING = 156
POINT_14_GROUP = Oi PA
POINT_14_TYPE = PA

POINT_15 = Position 2
POINT_15_POS = 964.9,6.8,-138
POINT_15_HEADING = 156
POINT_15_GROUP = Oi PA

POINT_16 = Position 3
POINT_16_POS = 964.8,6.8,-151.2
POINT_16_HEADING = 156
POINT_16_GROUP = Oi PA

POINT_17 = Position 1
POINT_17_POS = -10854.3,12,13422.8
POINT_17_HEADING = 287
POINT_17_GROUP = Mirai - Kinko JCT

POINT_18 = Position 2
POINT_18_POS = -10846.2,12,13415.8
POINT_18_HEADING = 283
POINT_18_GROUP = Mirai - Kinko JCT

POINT_19 = Position 1
POINT_19_POS = -83.8,7.1,10983.1
POINT_19_HEADING = 273
POINT_19_GROUP = Bayshore North - Kawasaki Port

POINT_20 = Position 2
POINT_20_POS = -103,7.7,10993.2
POINT_20_HEADING = 274
POINT_20_GROUP = Bayshore North - Kawasaki Port

POINT_21 = Position 1
POINT_21_POS = 2512.1,12.2,-9223.3
POINT_21_HEADING = 231
POINT_21_GROUP = C1 Outer - Edobashi JCT

POINT_22 = Position 2
POINT_22_POS = 2503.3,12,-9225.6
POINT_22_HEADING = 232
POINT_22_GROUP = C1 Outer - Edobashi JCT

POINT_23 = Position 1
POINT_23_POS = -4251.7,32.9,-10032.5
POINT_23_HEADING = 208
POINT_23_GROUP = Shinjuku Station
POINT_23_TYPE = ST

POINT_24 = Position 2
POINT_24_POS = -4244.1,32.9,-10016.8
POINT_24_HEADING = 159
POINT_24_GROUP = Shinjuku Station

POINT_25 = Position 3
POINT_25_POS = -4242.9,33,-9995.6
POINT_25_HEADING = 160
POINT_25_GROUP = Shinjuku Station

POINT_26 = Position 1
POINT_26_POS = -6147.9,29.6,13722.3
POINT_26_HEADING = 346
POINT_26_GROUP = Yokohama - Daikoku

POINT_27 = Position 2
POINT_27_POS = -6151.9,29.7,13702.2
POINT_27_HEADING = 347
POINT_27_GROUP = Yokohama - Daikoku

POINT_28 = Position 1
POINT_28_POS = -135.8,6.6,1475.1
POINT_28_HEADING = 128
POINT_28_GROUP = Heiwajima PA - South
POINTS_28_TYPE = PA

POINT_29 = Position 2
POINT_29_POS = -141.2,6.6,1463.3
POINT_29_HEADING = 132
POINT_29_GROUP = Heiwajima PA - South

POINT_30 = Position 3
POINT_30_POS = -146.6,6.5,1451.8
POINT_30_HEADING = 130
POINT_30_GROUP = Heiwajima PA - South

POINT_31 = Position 2
POINT_31_POS = 2179.8,-1.7,-7541.2
POINT_31_HEADING = 291
POINT_31_GROUP = C1 Inner - Ginza

POINT_32 = Position 1
POINT_32_POS = 4104.2,-7.8,8489
POINT_32_HEADING = 304
POINT_32_GROUP = Bayshore North - Tamagawa River Tunnel

POINT_33 = Position 2
POINT_33_POS = 4121,-8.3,8463.5
POINT_33_HEADING = 303
POINT_33_GROUP = Bayshore North - Tamagawa River Tunnel

POINT_34 = Position 1
POINT_34_POS = 3278.4,0.8,4292.5
POINT_34_HEADING = 197
POINT_34_GROUP = Bayshore South - Haneda Airport

POINT_35 = Position 2
POINT_35_POS = 3265.1,0.7,4278.1
POINT_35_HEADING = 199
POINT_35_GROUP = Bayshore South - Haneda Airport

POINT_36 = Position 1
POINT_36_POS = -7478.1,13,16477.6
POINT_36_HEADING = 22
POINT_36_GROUP = Kariba - Sakuragicho

POINT_37 = Position 1
POINT_37_POS = 767.5,16.5,-9914.9
POINT_37_HEADING = 87
POINT_37_GROUP = C1 Inner - Kitanomaru

POINT_38 = Position 2
POINT_38_POS = 782.8,16.5,-9921.3
POINT_38_HEADING = 89
POINT_38_GROUP = C1 Inner - Kitanomaru

POINT_39 = Position 1
POINT_39_POS = 4522.3,14,-8210.6
POINT_39_HEADING = 350
POINT_39_GROUP = Belt Inner - Fukuzumi

POINT_40 = Position 2
POINT_40_POS = 4524.7,14.3,-8199.7
POINT_40_HEADING = 349
POINT_40_GROUP = Belt Inner - Fukuzumi

POINT_41 = Position 1
POINT_41_POS = -2533.6,11,8864.5
POINT_41_HEADING = 86
POINT_41_GROUP = Yokohane - Kawasaki

POINT_42 = Position 1
POINT_42_POS = 1371.3,9.8,-6547.1
POINT_42_HEADING = 117
POINT_42_GROUP = C1 Outer - Bayshore Access

POINT_43 = Position 2
POINT_43_POS = 1363.8,9.7,-6537.6
POINT_43_HEADING = 118
POINT_43_GROUP = C1 Outer - Bayshore Access

POINT_44 = Position 1
POINT_44_POS = 318,13,-5719.1
POINT_44_HEADING = 63
POINT_44_GROUP = C1 Outer - Shibakoen

POINT_45 = Position 2
POINT_45_POS = 305.9,12.8,-5720.3
POINT_45_HEADING = 61
POINT_45_GROUP = C1 Outer - Shibakoen

POINT_46 = Position 1
POINT_46_POS = -2171.6,36.8,-6448
POINT_46_HEADING = 72
POINT_46_GROUP = Shibuya - Takigicho

POINT_47 = Position 2
POINT_47_POS = -2159.5,36.8,-6449.3
POINT_47_HEADING = 73
POINT_47_GROUP = Shibuya - Takigicho

POINT_48 = Position 1
POINT_48_POS = -4581.4,34.7,-6013.5
POINT_48_HEADING = 80
POINT_48_GROUP = Shibuya Access

POINT_49 = Position 2
POINT_49_POS = -4754.6,34.7,-5830
POINT_49_HEADING = 12
POINT_49_GROUP = Shibuya Access

POINT_50 = Position 1
POINT_50_POS = -4305.1,36.8,-8883.1
POINT_50_HEADING = 176
POINT_50_GROUP = Yoyogi PA
POINT_50_TYPE = PA

POINT_51 = Position 2
POINT_51_POS = -4313.3,36.7,-8883.1
POINT_51_HEADING = 174
POINT_51_GROUP = Yoyogi PA

POINT_52 = Position 3
POINT_52_POS = -4324.5,36.7,-8882.3
POINT_52_HEADING = 174
POINT_52_GROUP = Yoyogi PA

POINT_53 = Position 1
POINT_53_POS = 100.3,12.2,-5830.6
POINT_53_HEADING = 191
POINT_53_GROUP = C1 Inner - Shibakoen

POINT_54 = Position 2
POINT_54_POS = 92.5,12.2,-5841.1
POINT_54_HEADING = 193
POINT_54_GROUP = C1 Inner - Shibakoen

POINT_55 = Position 1
POINT_55_POS = 550.8,12.4,-3796.7
POINT_55_HEADING = 133
POINT_55_GROUP = Yokohane South - Shinagawa

POINT_56 = Position 1
POINT_56_POS = -7075.9,32.9,16318.3
POINT_56_HEADING = 351
POINT_56_GROUP = Bayshore North - Honmoku JCT

POINT_57 = Position 2
POINT_57_POS = -7079,33.2,16306.4
POINT_57_HEADING = 351
POINT_57_GROUP = Bayshore North - Honmoku JCT

POINT_58 = Service Station 1
POINT_58_POS = 1672.2,12.6,-7998.5
POINT_58_HEADING = 96
POINT_58_GROUP = Yaesu

POINT_59 = Service Station 2
POINT_59_POS = 1699,12.4,-8024.1
POINT_59_HEADING = 120
POINT_59_GROUP = Yaesu

POINT_60 = Service Station 3
POINT_60_POS = 1606.8,12.7,-7968.5
POINT_60_HEADING = -96
POINT_60_GROUP = Yaesu

POINT_61 = Service Station 4
POINT_61_POS = 1595.9,12.7,-7964.8
POINT_61_HEADING = -96
POINT_61_GROUP = Yaesu

If the whole group inheritance of types sounds too complicated for you, simply add the type to each point.

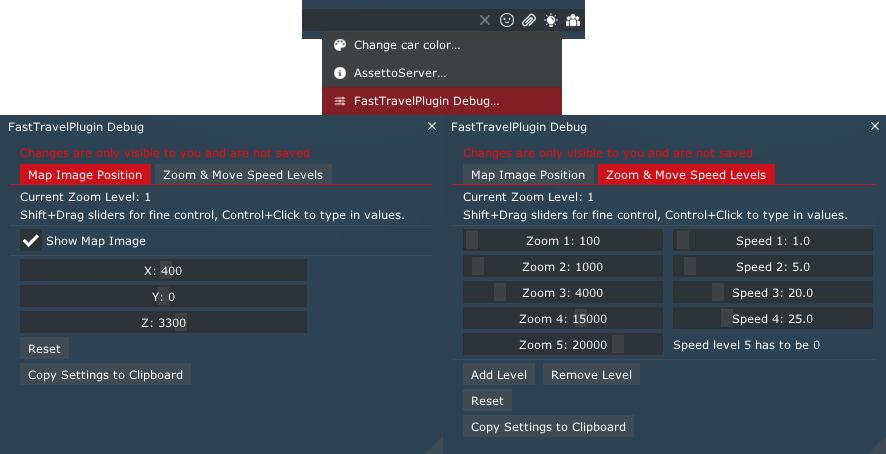

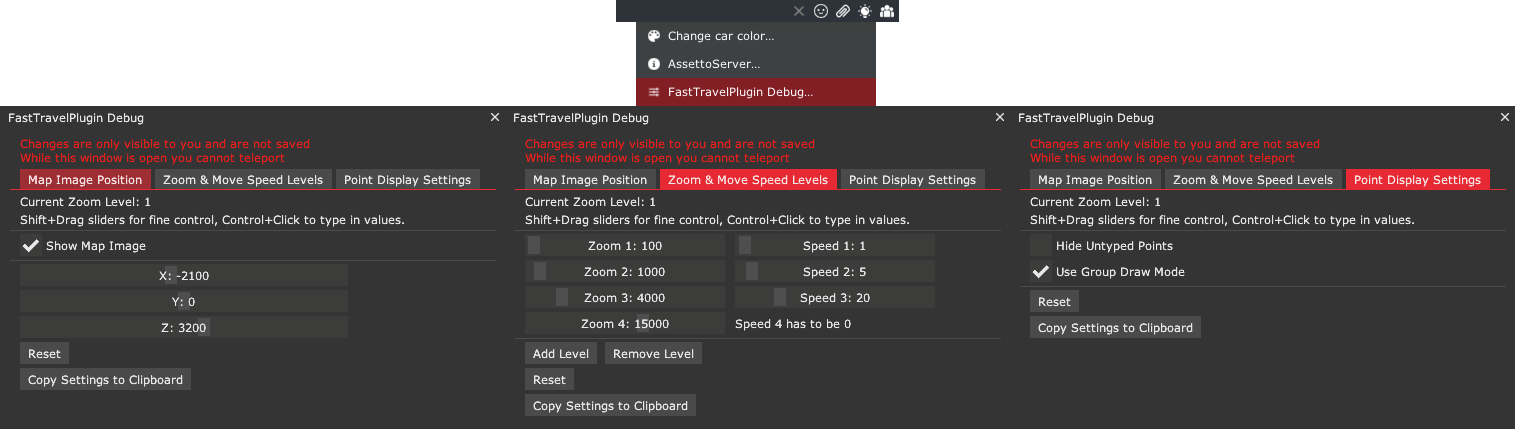

Admin Debug Tool​

note

Make sure you have admin options enabled in your CSP chat app settings.
Open the chat app > Click on the wheelcog > under Administrating > Check Enable admin options
Then click on the Hammer icon to login.

When logged in as admin, you can use the FastTravelDebug extra option to manage map image position, zoom and speed level.
Simply click on the lightbulb icon in the chat app and select FastTravelDebug...
Keep in mind that changes made are not visible to other players until you apply them to the plugin_fast_travel_cfg.yml and restart the server.
